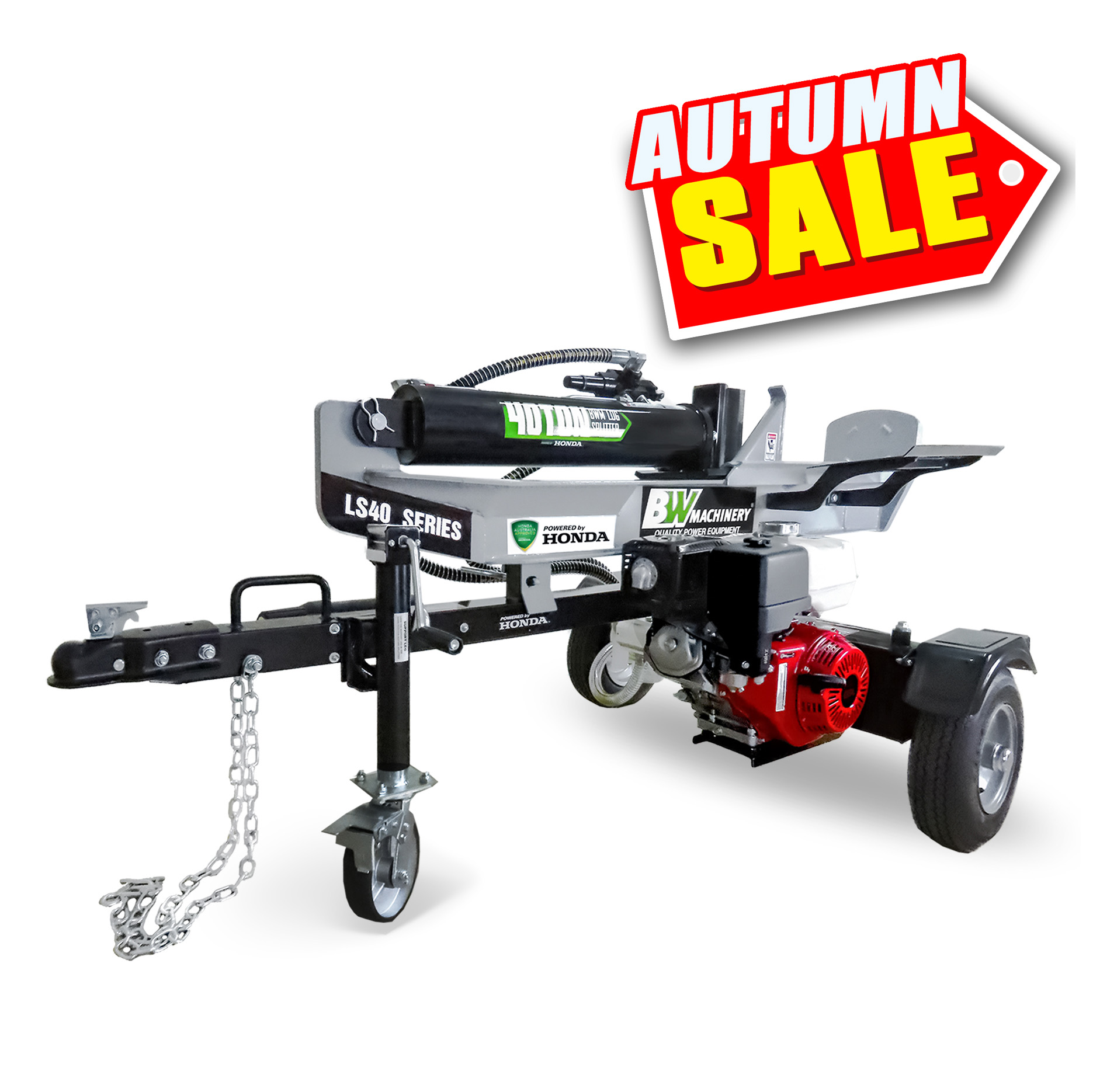

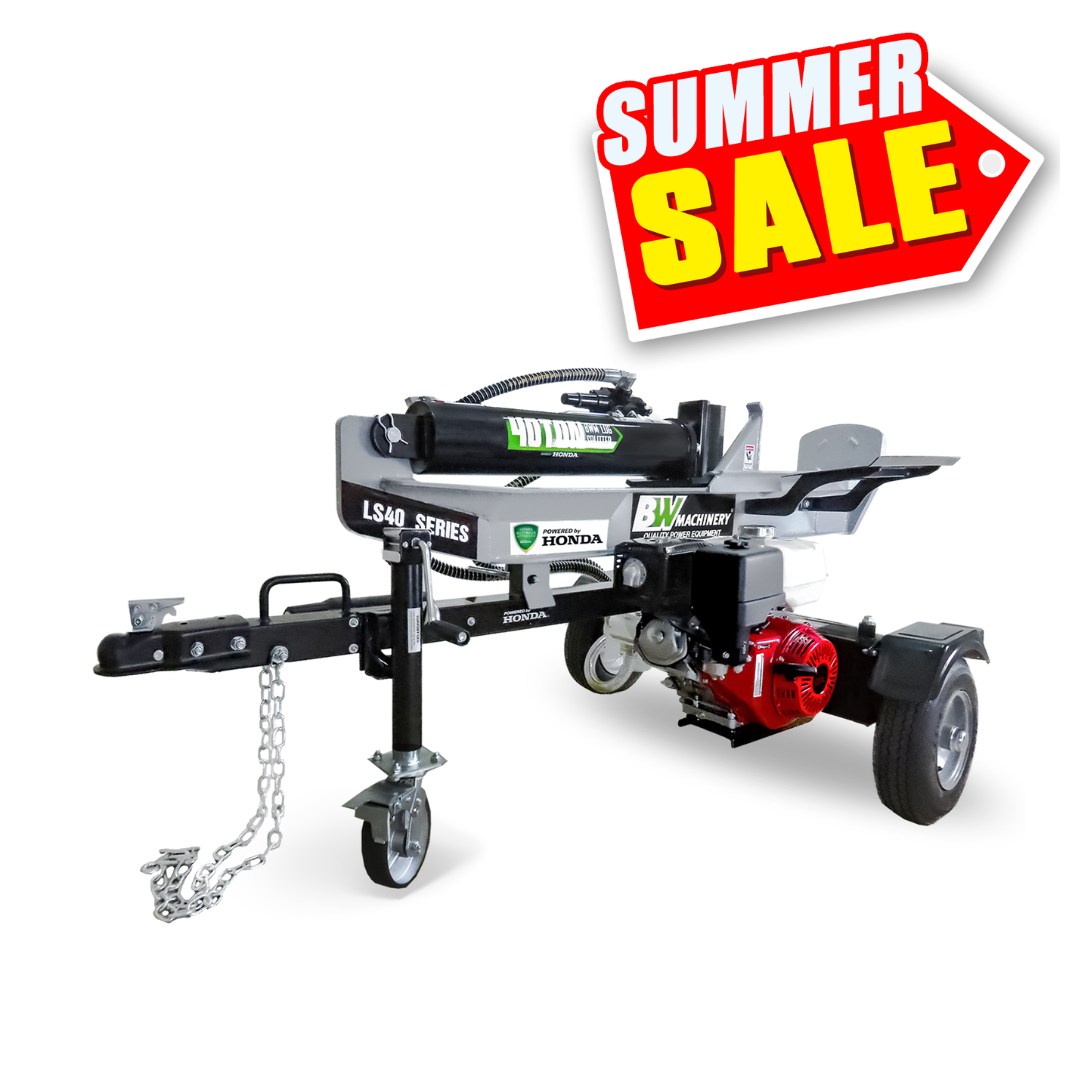

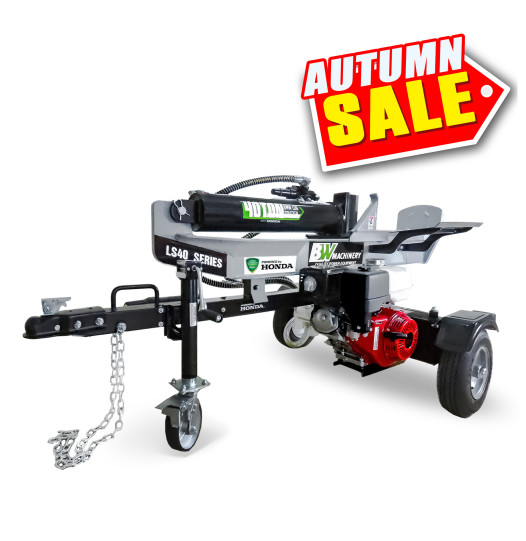

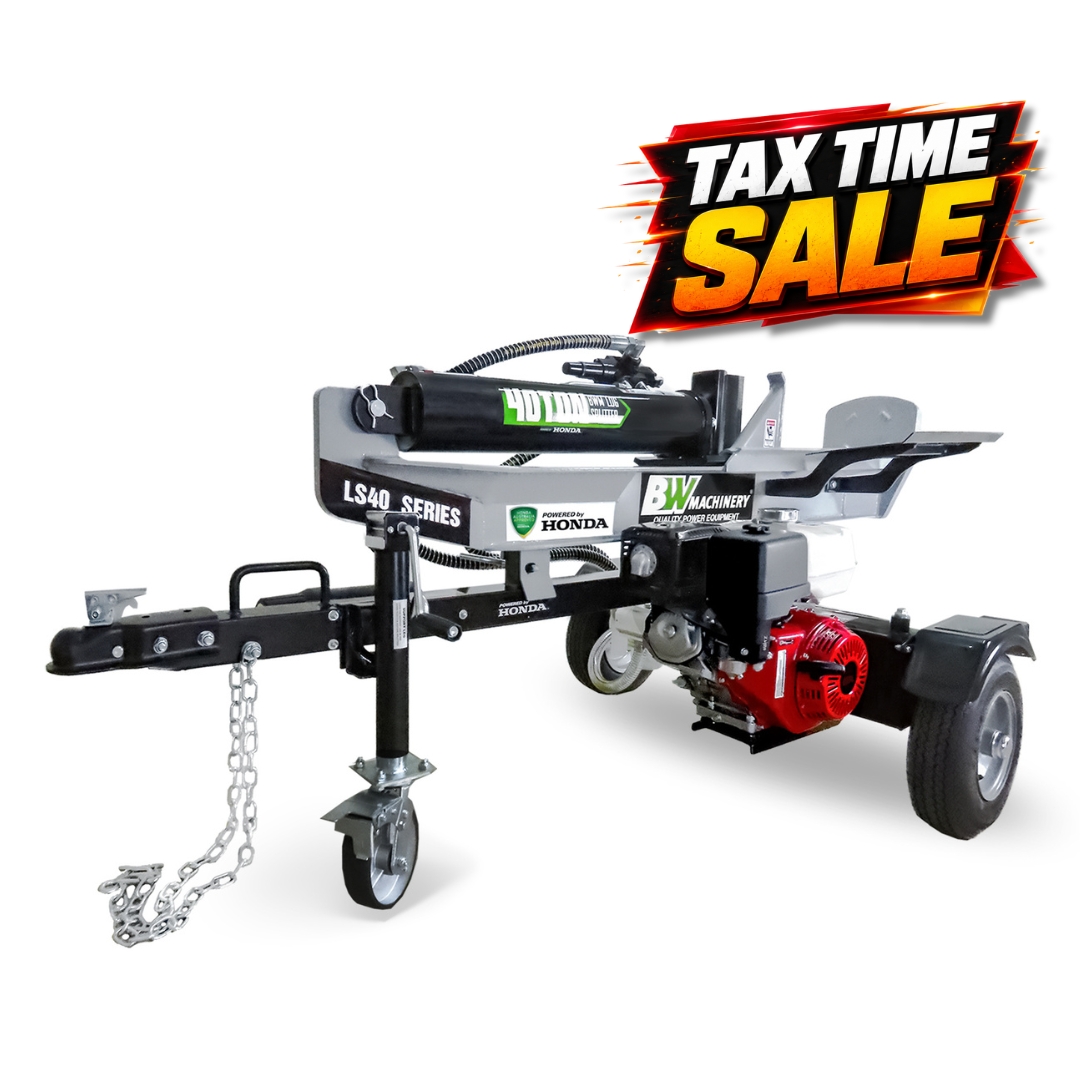

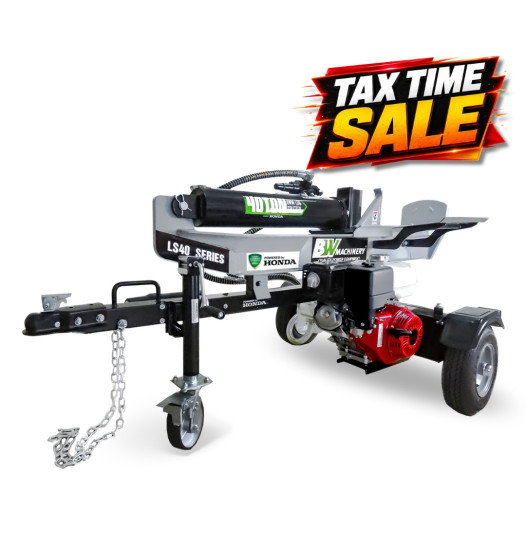

BWM LS40H Premium Series Log Splitter - Honda GX390 OHV Engine
Regular Price
$4,099.00
Sale Price
$3,799.00 (7.32% off)
In Stock
12 month interest free option available!
Price Match
Please fill in the form below with your details and the product you are enquiring about and we will get back to you as soon as we can.
- Product Description
- Specification
- Video Gallery
- User Manual
- Spare Parts Diagram
Was $4099 Now $3799 Save $300 *FREE SHIPPING* (T&Cs apply. Delivery area and/or residential surcharges may apply.) Bonus Pack:Â FREE log catcher x 1, Hydraulic Oil (20L) x 1, Honda Engine Oil (1L) x 2 Free Stihl MS181 chainsaw with BWM premium log splitters and vertical log splitter purchase!!
*T&Cs apply. Selected models only. Available from B.W.Machinery Stores & Website only.
Assemble service is available for in-store pick up only (extra $150).
12 month interest free option available!!! $73.06 p/w. Click to apply: https://bwmachinery.com.au/skye/
Description:
The BWM LS40H Log Splitter is powered by a genuine commercial Honda GX390 OHV engine (Honda Australia Approved) and built to perform in demanding applications. Featuring a 2-stage, (17GPM/3950psi) pump for maximum speed without loss of pressure and is designed to split in both vertical and horizontal positions, for logs up to 30″ in diameter. A convenient lift handle provides added control for easier and safer transitions from vertical to horizontal positions while the high-performance wedge makes splitting easier and the log cradle moves split wood more efficiently.
All our BWM log splitters have a minimum 2 years warranty, with premium range (LS30/H/LC, LS40/H/LC) having a 3 years warranty. For your peace of mind, we offer money back guarantee if your log splitter fails to split your wood*
Features:
- Powered by commercial Honda GX390 OHV engine (Honda Australia Approved)
- 40 tons splitting force
- Working in both horizontal and vertical positions
- Split logs up to 30″ (762mm) in diameter
- 2 stage pump at 17GPM/3950psi
- Up to 12 seconds cycle time
- Auto return valve
- Heavy duty tow bar with 50mm coupler
- Portable design with a 8″ jockey wheel
- 3 Years Warranty
- 3 Years Engine Warranty
Comparison Chart (click to enlarge)
Splitting force: | 40 Ton |
Operation: | Horizontal and vertical |
Cycle time: | Up to 12 seconds |
Engine: | Honda GX390 OHV engine (Honda Australia Approved) |
Hydraulic pump: | 2 stage pump at 17GPM/3950psi |
Hydraulic cylinder diameter: | 5" |
Valve: | Auto return valve |
Maximum log diameter: | 30" (762mm) |
Coupling: | 50mm with safety chain |
Jockey wheel: | 8" |
Fuel volume: | 6.1L |
Oil volume: | 1.1L (10W30) |
Petrol type: | Unleaded |
Start system: | Recoil pull start |
Weight(N.W/G.W): | 263KG/294KG |
Display dimensions(LxHxW): | 2290mm*1230mm*1090mm |
Package dimensions: | 1905*570*800mm |
Warranty: | 3 Years Domestic Warranty |
3 Years Engine Warranty |
BWM LS40H Log Splitter Manual Book (model before 2024)  Assembly Instruction From Page 9 to 19.Â
BWM LS40H Log Splitter Manual Book (Jockey Wheel Version)Â Assembly Instruction From Page 7 to 10.Â
Need more information please contact us on 1300 454 585.
BWM LS40H Log Splitter Spare Parts List (model before 2024)
BWM LS40H Log Splitter PARTS LIST (jockey wheel version)
Need more information please contact us on 1300 454 585.
-
